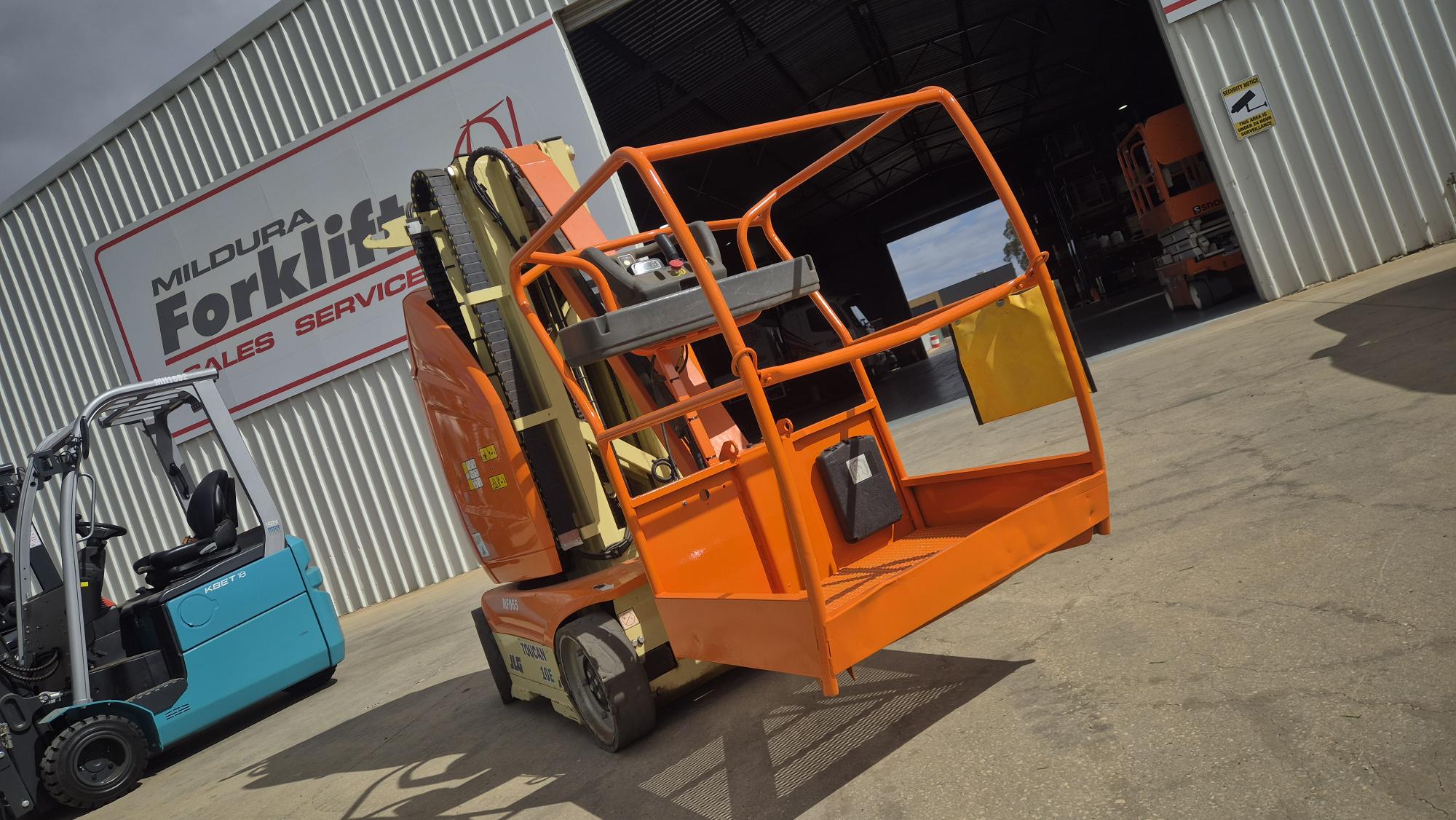

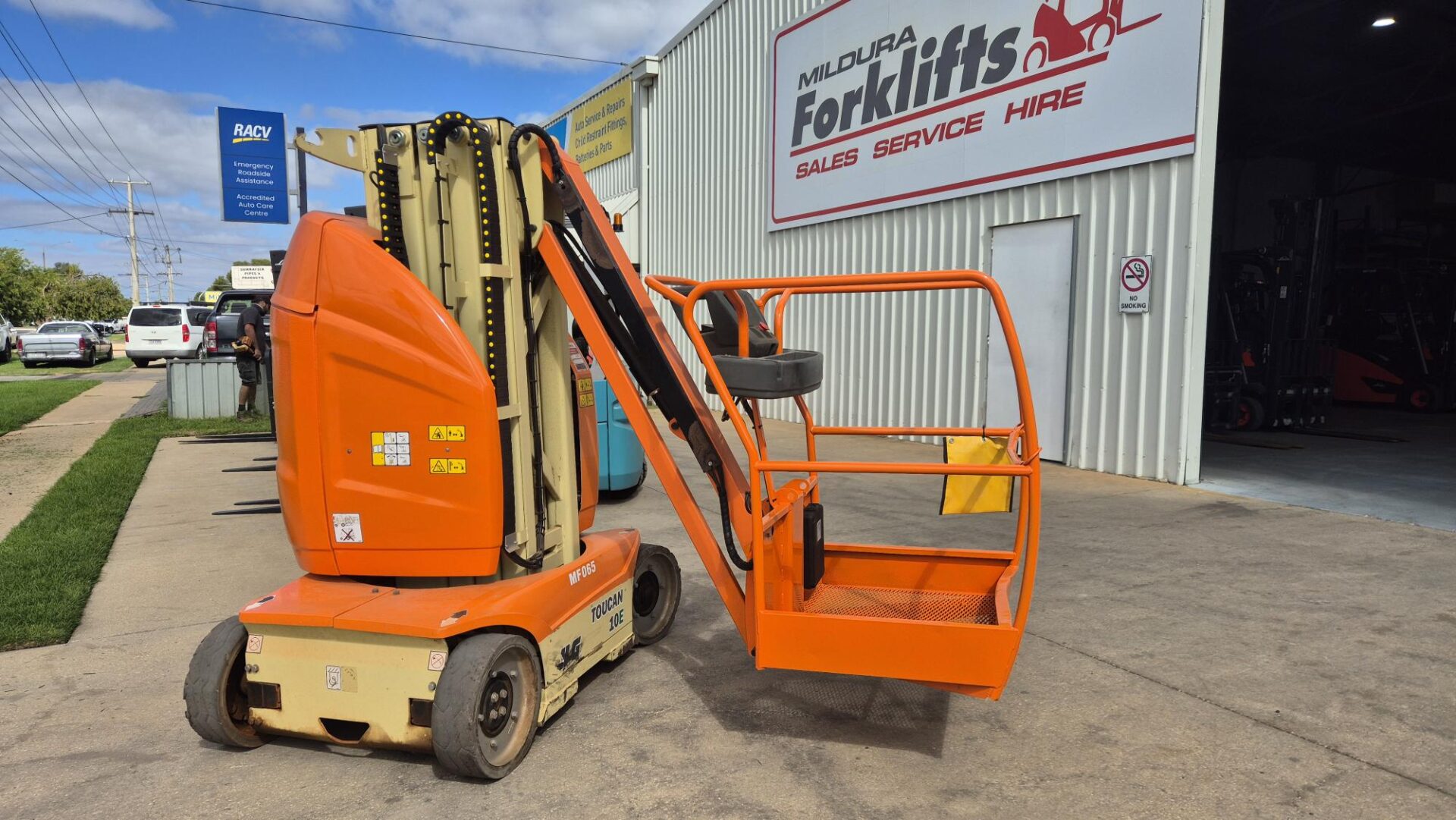

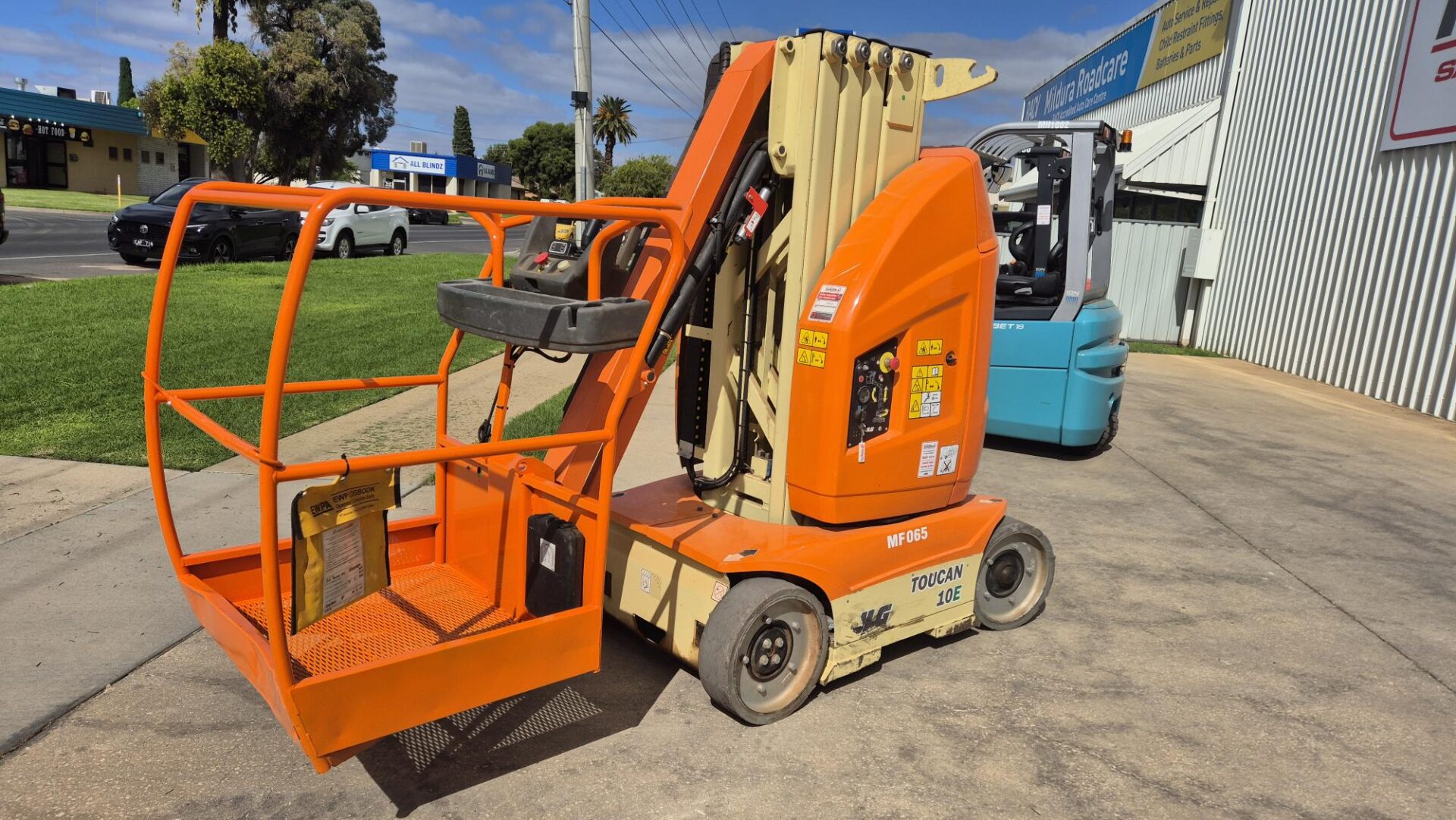

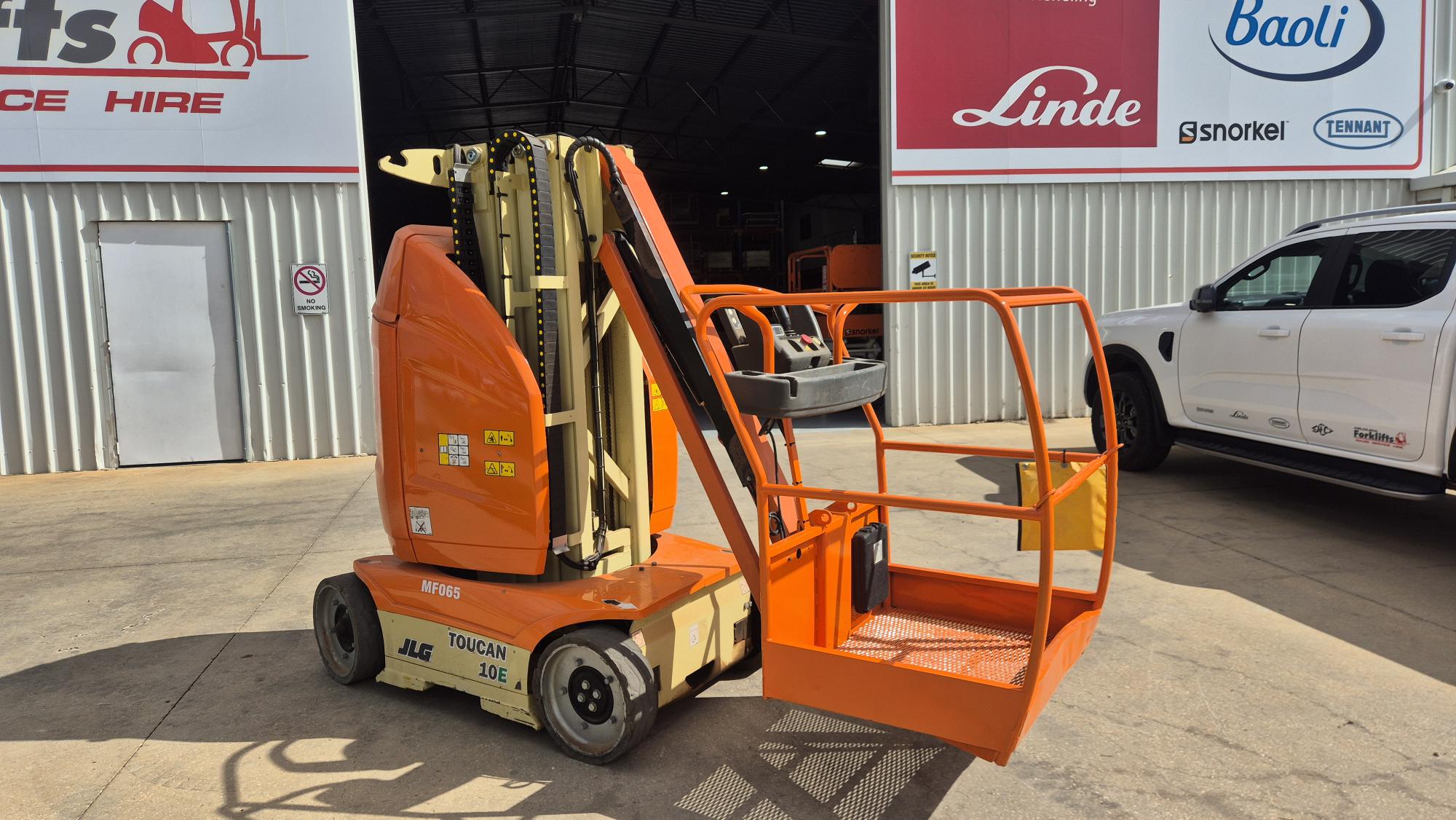

JLG 10E Toucan Mast Boom Lift

Date of manufacture: 2017

Last inspection & service 20/03/2025

720hrs

• Tyres (non-marking solid) 406 x 125 mm

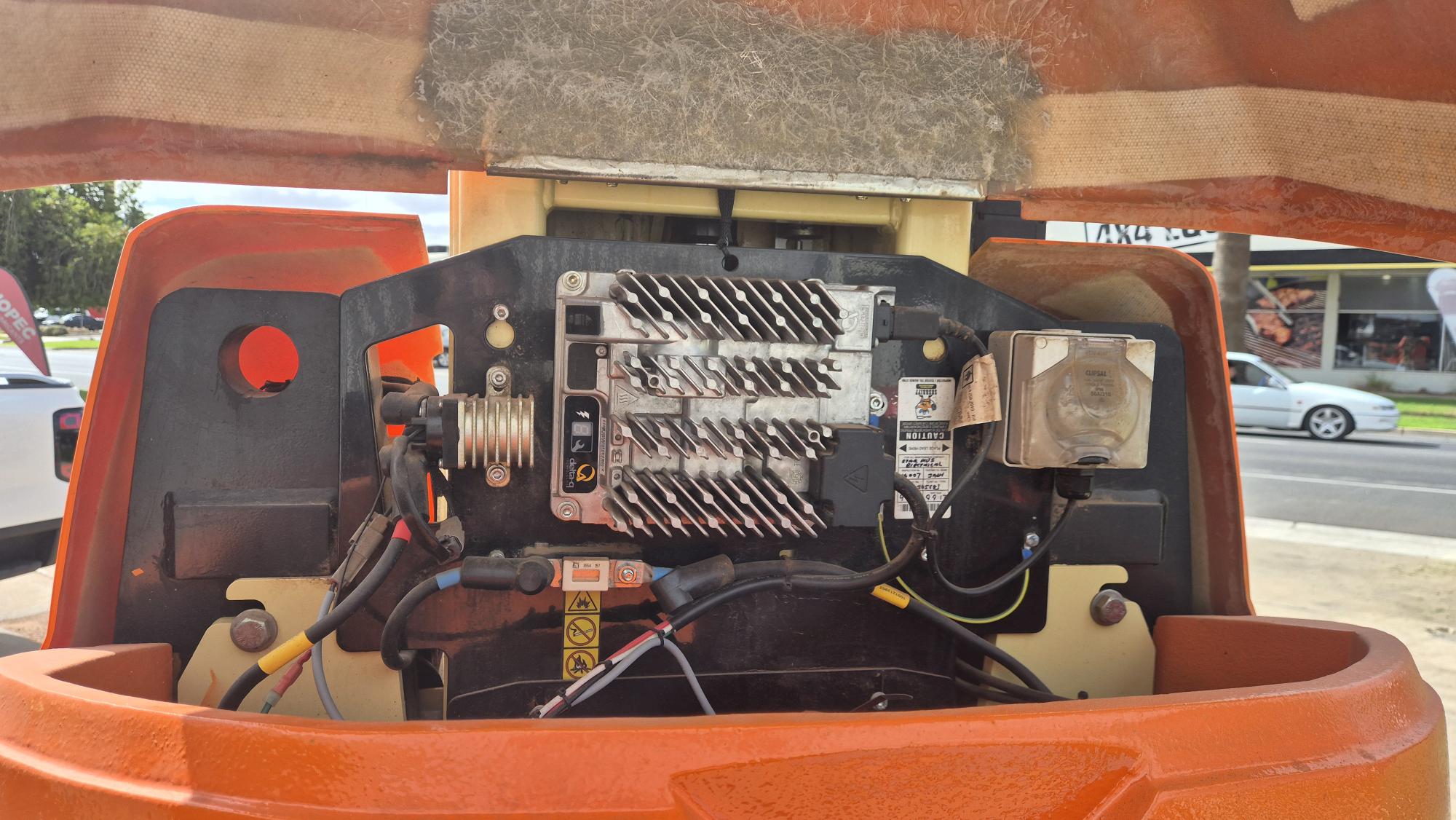

• Electrical system 24V DC

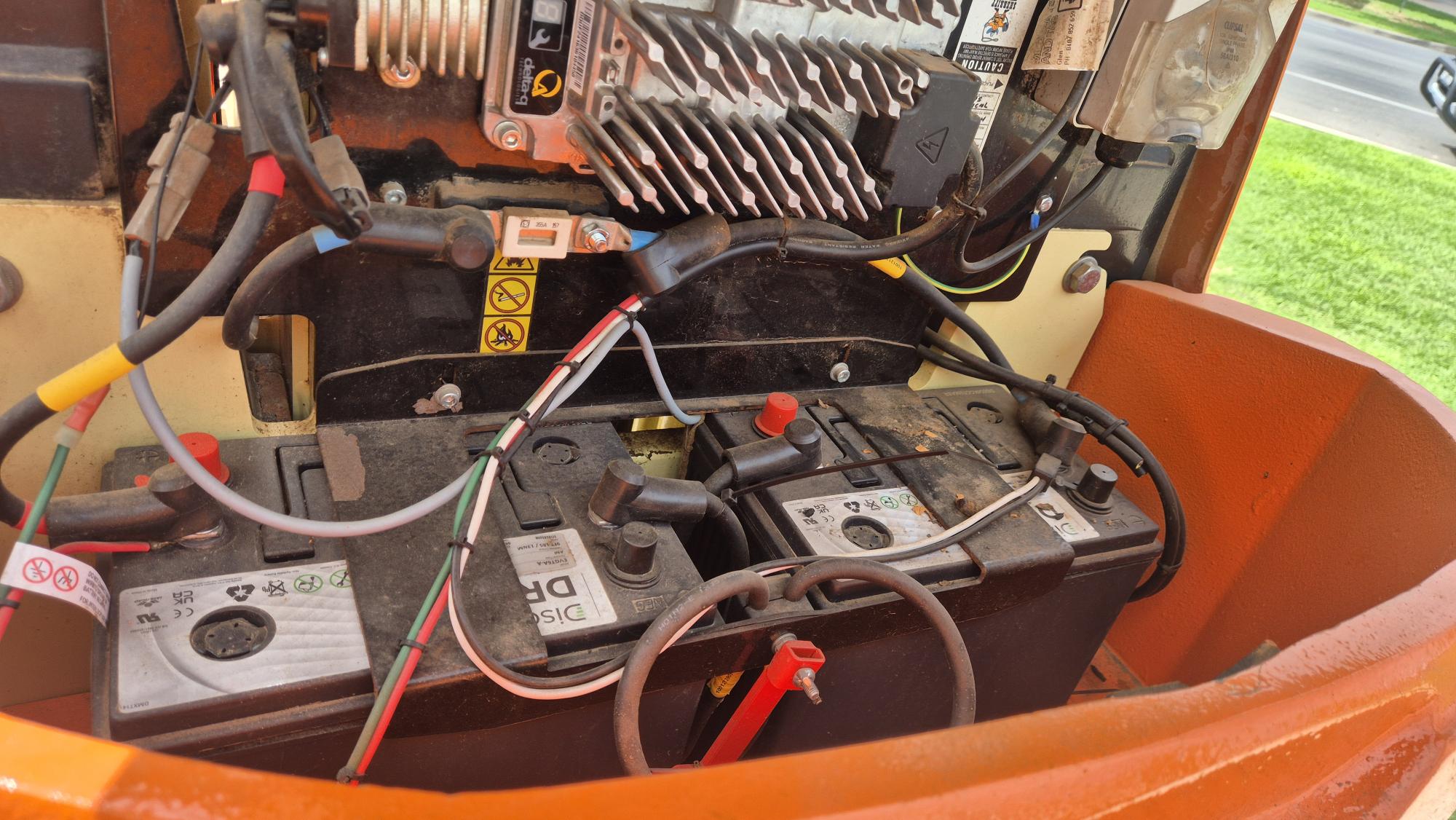

• Batteries (AGM) 24V – 260 A.h
• Charger onboard 240v
• Drive motors Dual AC motors
• Electrical (pump) motor 3kW 24V DC
• Hydraulic system 7.5 L

• Working height 10.10 m
• Working outreach (standard platform) 3.38 m
• Up and over height 6.51 m
• Swing (not continuous) 345°
• Platform capacity 200kg
• Jib – overall length 1.60 m
• Jib – range of articulation 126° (+65°/ -61°)
A. Platform size standard platform (L x W) 0.70 x 0.90 m
B. Overall width 0.99 m
C. Tailswing 12 cm
D. Stowed height 1.99 m
E. Overall length (standard platform) 2.82 m
F. Wheelbase 1.20 m
G. Ground clearance 10 cm
• Machine weight – standard platform 2,980 kg
• Drive speed – lowered 5.5 km/h
• Turning radius (outside) 1.99 m
• Turning radius (inside) 0.55 m

MF065
